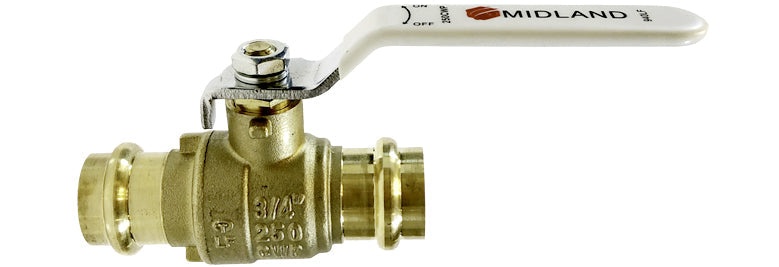

Lead FreeCopperPress Ball Valve - Heat-free method for joining copper tubes allowing the installers the confidence to know the joint is secure due to the leak-detection o-ring. During low-pressure testing, if the joint is not pressed properly, the specialized o-ring will leak. This allows the installer to correct the press before the system is operational at higher pressures.
- 2-Piece, Lead Free construction.
- Available sizes: 1/2 inch up to 4 inches.
- Integral press end connections designed for hard and soft copper tubing.
- ISO-9001
- 250 WOG - 250 CWP (2-1/2" to 4")
- Full port stainless steel ball.
- One o-ring design.
- Blow out proof stem.
- UPC & NSF-61 compliant.
- AB1953 & NSF-372 compliant.
Two piece, Full Port, Lead Free Copper.Press ball valves are designed for use in flameless, copper press piping systems. These press ball valves feature a lead free brass body, adjustable packing gland and blowout proof stem with a single o-ring seal. These press ball valves come with integral ASTM-B88 compliant press end connections that can be use with type K, L, M, hard copper tubing 1/2 inch to 4 inches.
